Ceramic Tile Cutting Machine

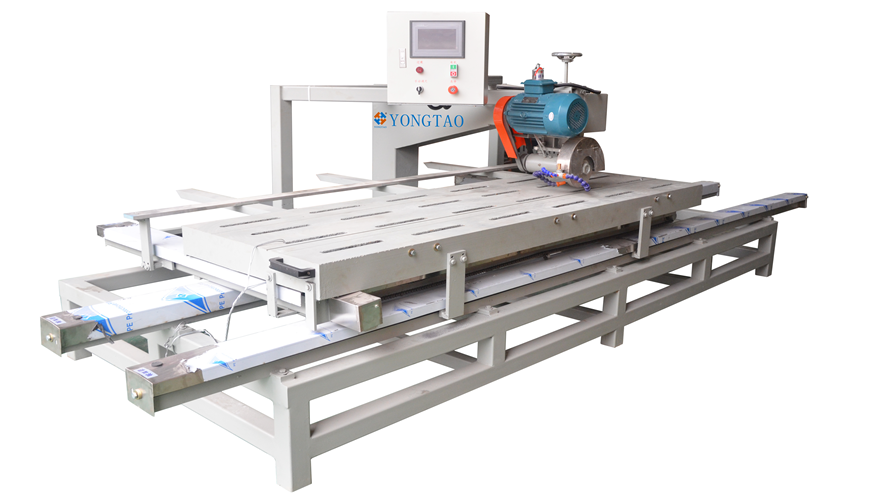

YTQS-4-2400 CNC Manual Type Large Format Tile Cutter
Specialized to process big size tile, this manual large format tile cutter can be your mature solution on cutting size adjustment. Come to Yongtao to get a quote!
PRODUCT DETAILS
YTQS-4-2400 CNC Manual Type Large Format Tile Cutter is specialized to process big size tile which belongs to large manual tile cutter,the max processing size is 2400mm,for example 2400mm*2400mm ceramic tile cut into 2400mm*1200mm,it use 200~250mm blades,the cutting effect is good.This machine have a advantage on cutting size adjustment,it use the precise screw and stepping motor,processing of high precision,good mechanical stability,simple operation.

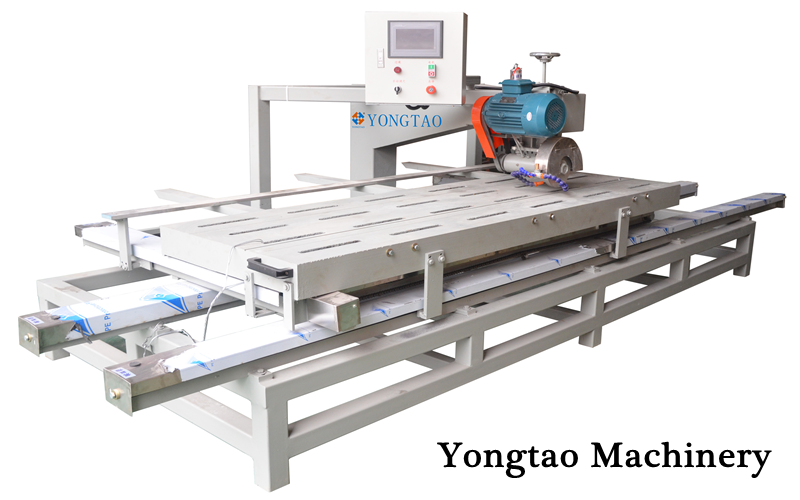

Large Format tile cutting machine:
Parameter of YTQS-4-2400 CNC Manual Type Large Format Tile Cutter
Product introduction
Description of YTQS-4-2400 CNC Manual Type Large Format Tile CutterYTQS-4-2400 CNC Manual Type Large Format Tile Cutter is specialized to process big size tile which belongs to large manual tile cutter,the max processing size is 2400mm,for example 2400mm*2400mm ceramic tile cut into 2400mm*1200mm,it use 200~250mm blades,the cutting effect is good.This machine have a advantage on cutting size adjustment,it use the precise screw and stepping motor,processing of high precision,good mechanical stability,simple operation.
Large Format tile cutting machine:
Parameter of YTQS-4-2400 CNC Manual Type Large Format Tile Cutter
TECHNICAL DATA
Machine specifications
| Nos. Of cutting head | 1pc |
|---|---|
| Dia. Of blade | Φ200-250mm*60mm |
| Main motor power | 4kw |
| Speed of conveyor | 1.5m/min |
| Max. Cutting width | 2400mm |
| Max. Cutting thickness | 20mm |
| Total power | 4.37kw |
| Size of machine | 4.5m*2.0m*1.8m |
| Weight | About 1800kg |
| Water consumption | 100L/min |
Technical data reflects the legacy product record. Confirm voltage, options and final configuration with the approved quotation.
