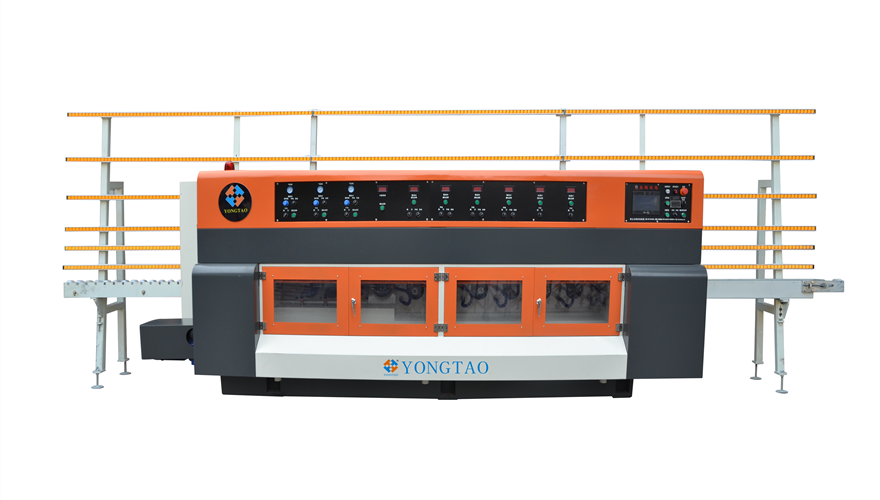

YSMD 6+4 Multifunction Marble Edge Profile Chamfer Polishing Machine
Yongtao 6+4 marble edge polishing machine, 6 heads processing for Full Bullnose edges, 4 heads for beveled edges, molding belt polishing, can process various shapes of marble
Product introduction
Description of YSMD 6+4 Multifunction Marble Edge Profile Chamfer Polishing Machine
YSMD 6+4 Multifunction Marble Edge Profile Chamfer Polishing Machine,This marble edge polishing machine is the new generation product of Yongtao Machinery.It can process single thick slab and double thick slab for all kinds of edge shapes,such as 180 degree round edge, chamfer etc.This machine have 2 heads to profile,and 3 heads to polish.The polishing wheel adopts automatic control system.It great save the labor cost, and improve the stability of product effect. We have marble edge polisher for sale.
marble edge polishing machine:
Stone Edge Shapes By YSMD 6+4 marble edge polisher
1. Pencil Edge 2. chamfer 3. bevel 4. bevel edge 5. 1/2" bevel 6. 1/4" bevel 7. 1/8" bevel 8. Half bevel 9. Small Bevel 10. Large Bevel 11. 3/16" bevel 12. 3/8" bevel 13. 3/4" bevel 14. 45 Bevel 1/4" Rad. 15. 1-1/2"Laminated Bevel 16. ogee bevel 17. ogee Edge 18. Waterfall 19. Bevel Top & Bottom 20. Half Bullnose 21. Demi Bullnose 22. Full Bullnose 23. Ogee Bullnose 24. Dupont Bullnose 25. 1-1/2" Laminated Bullnose 26. Double Radius 27. Double Cove 28. 1/4" Radius 29. 1/8 Radius 30. 5/8" Radius 31. 1/4" Round 32. 1/8" Round 33. 3/8" Round 34. 3/16" Round 35. Round Top & Bottom 36. Standard Ogee 37. Dupont Edge 38. Crescent Pencil edges 39. triple pencil edge 40. Offset Ogee 41. Offset Ogee Bullnose 42. Offset Dupont 43. Offset Dupont Bullnose 44. Cove Dupont 45. Cove Ogee 46. Stair Tread 47. Lipping
Parameter of YSMD 6+4 Marble Edge Polishing Machine
Yongtao marble edge polishing machine is a well-known manufacturer in China. We provide various types of marble edge polisher sales, which are used by customers all over the world. We also customize special marble edge polishing machines for customers. Welcome to email us.
Machine specifications
| Nos. of profile head | 2pc |
|---|---|
| Motor power of profile head | 5.5kw |
| Nos. ofpolish head | 4pc |
| Motor power of polish head | 3kw |
| Diameter of wheel | Φ150-200mm*30mm |
| Motor power of profile head | 5.5kw |
| Nos. Of chamfer head | 1pc *3kw |
| Nos. Of chamfer polish head | 3pc *0.75kw |
| Processing width | 100-2800mm |
| Diameter of polishing wheel | 95mm |
| Processing speed | 0.5-3m/min |
| Max processing thickness | 60mm |
| Total power | 36.05kw |
| Air consumption | 30L/min |
| Water consumption | 300L/min |
| Size of machine | 7.5m*1.25m*2.3m (with frame) |
| Weight | About4500 kg |
Technical data reflects the legacy product record. Confirm voltage, options and final configuration with the approved quotation.
